AVE-ita-

AF986GSM

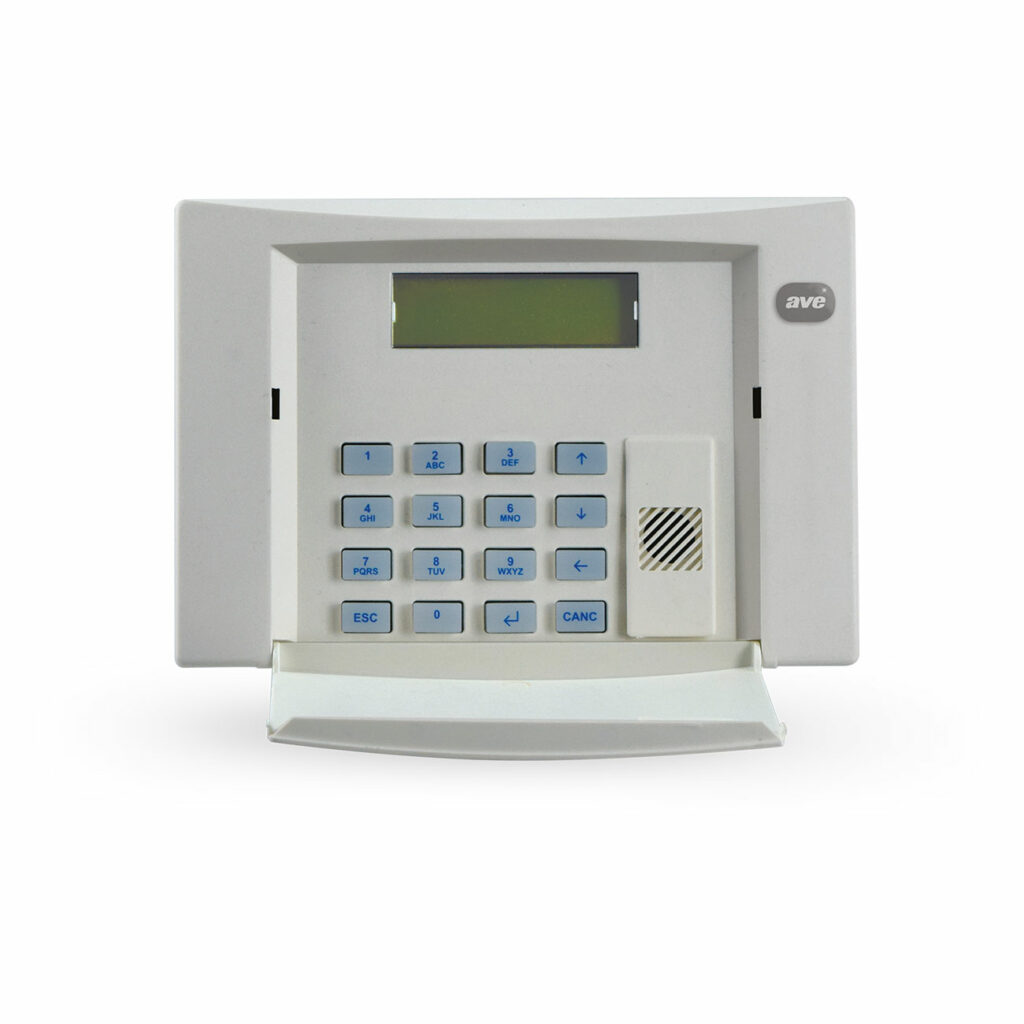

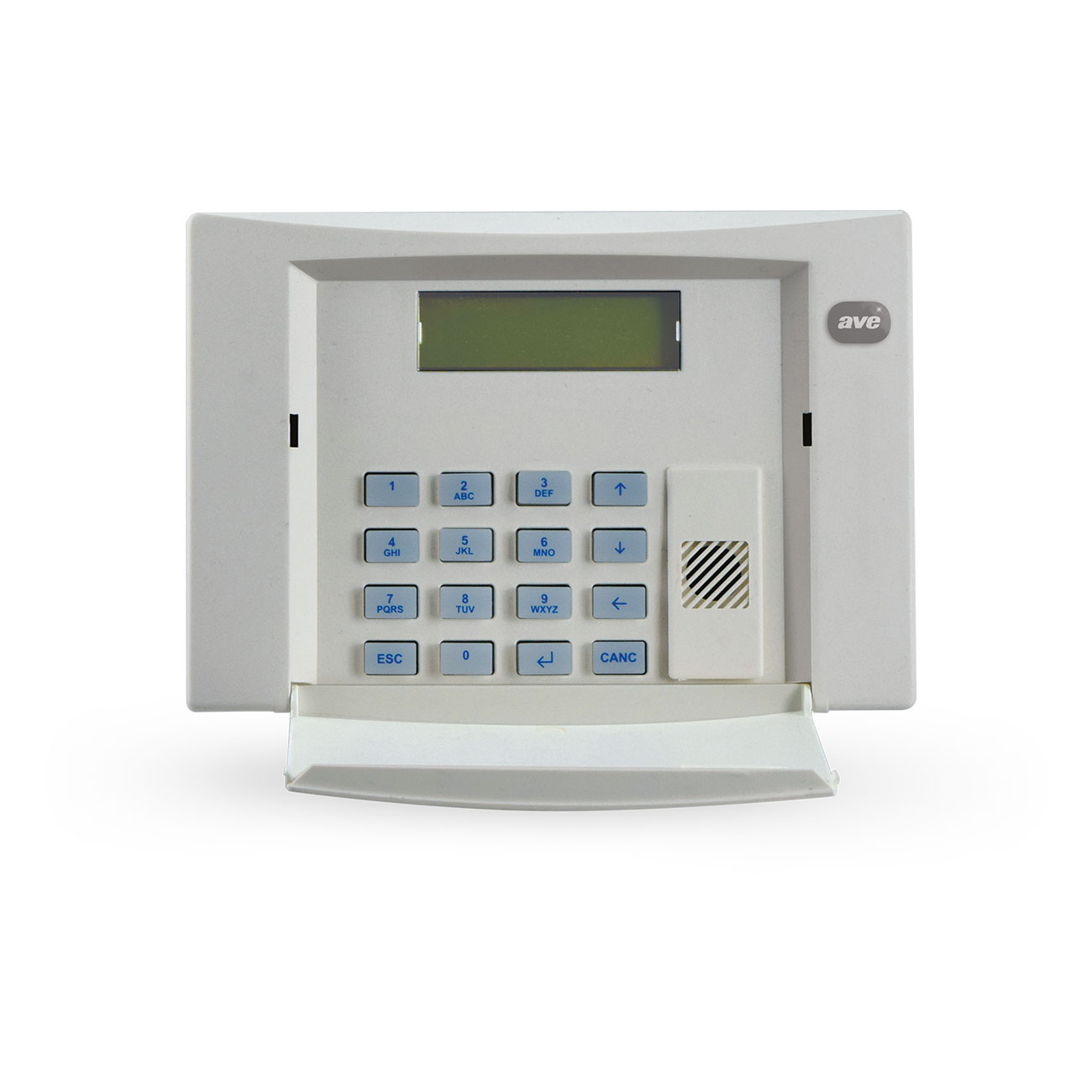

GSM 2-way wired phone dialer
Hardwired two-way GSM telephone dialer. 4 channels with vocal messages, 4 channels with SMS and 6 technical SMS. 2 open collector outputs that you can manage also via SMS. Alphanumerical keyboard and LCD on board. To be completed with 2 AF916 batteries. Power Supply: 10-14Vdc. Dimensions 161x110x30 mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379098668
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379098668
Length min.pck.: 220,00
Width min.pck.: 155,00
Height min.pck.: 90,00
Volume min.pck.: 3,06
Weight min.pck.: 360,00
Quantity min. order: 1,00
Reference Metel: GSM 2-WAY WIRED PHONE DIALER
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

RAEE CAT. 5.18 RIPRODUZ.SUONI:
RAEE CAT. 5.18 RIPRODUZ.SUONI
Technical data ETIM

Technical data ETIM

Mounting method:
Rated voltage: 12
With display: Si
Bus system KNX: No
Bus system radio frequent: No
Bus system Powernet: No
Width in number of modular spacings: 161
Other bus systems:
Number of serial interfaces:
Bus system LON: No
With integrated DCF clock: Si
With integrated GSM-modem: Si
Number of integrated output channels: 2
Bus system KNX radio: No
Manuals and downloads
Request information
Last update: 02-08-2023

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
