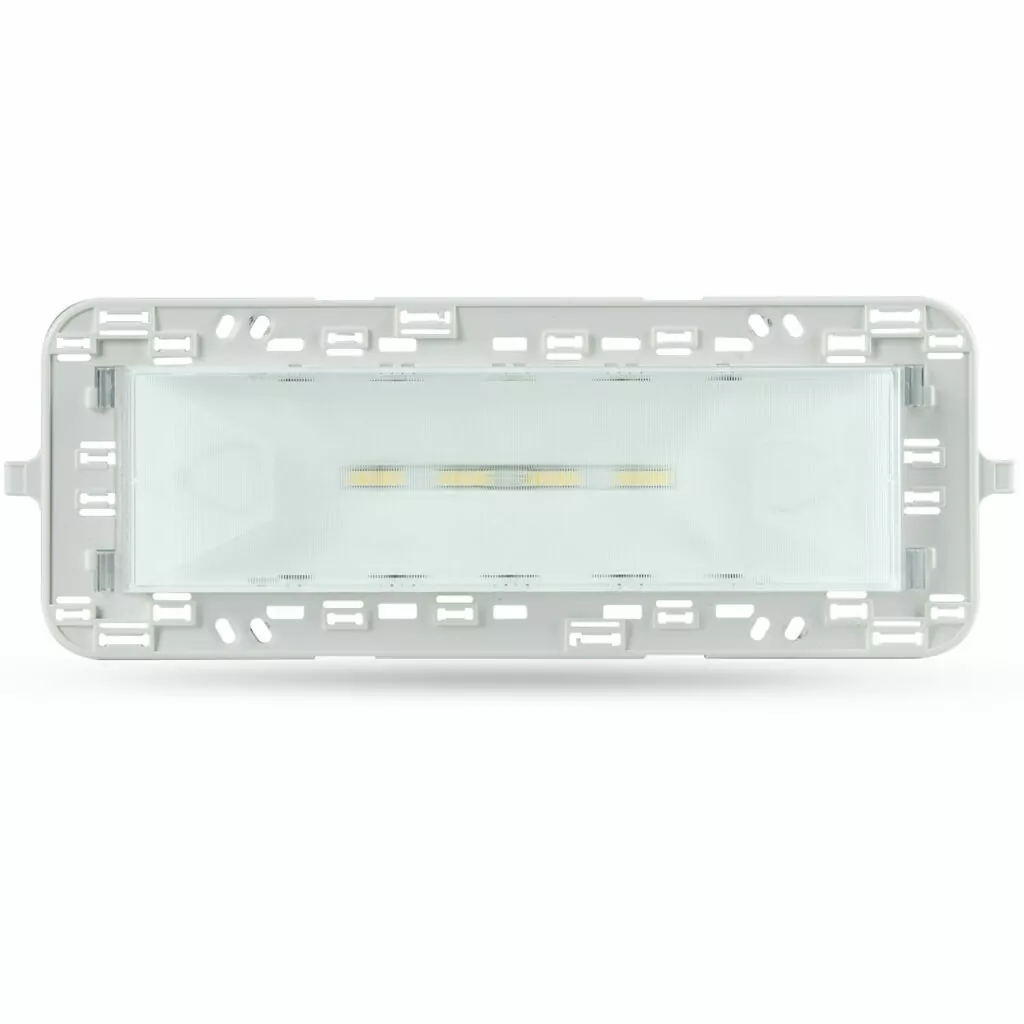

Emergency light led 230V S44 4X7M
High efficiency white LED emergency lamp 230 V ~ 50/60 Hz - SE - absorption in stand-by 5mA (340 mW) - rechargeable and replaceable battery 3.7 V 700mAh. Charging time 12 hours, autonomy 2 hours. Permanent self-diagnosis of battery functionality with light signal in case of anomaly - 90 Lumen luminous flux. Complete with 6/7 module MULTICOMPATIBLE support, which can be installed both in standard 6/7 module flush-mounted boxes and in 4 Mod boxes. To be completed with standard 7-module S44 plates from Ave or with plates from other manufacturers (Bticino Livinglight, Bticino Living International, Bticino Light, Vimar Eikon, Vimar Plana) - 4x7 modules
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379098149
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379098149
Length min.pck.: 220,00
Width min.pck.: 155,00
Height min.pck.: 90,00
Volume min.pck.: 3,06
Weight min.pck.: 211,00
Quantity min. order: 1,00
Reference Metel: EMERGENCY LIGHT LED 230V S44 4X7M
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Mounting method: Built-in
Protection class: II
Function: Escape route lighting
Lamp holder: Other
Connection type: Screw connection
Colour housing: Black
Voltage type: AC
Power supply system: Central (central battery)
Type of control gear: Not required
Suitable for labelling type: Other
Type of indicator: Only single-sided
Number of poles: 2
Wiring system: Standby switching
Number of lighting heads: 1
Material cover: Glass transparent
Impact strength: IK00
Nominal voltage: 230|230
Degree of protection (IP): IP20
With light source: Si
Suitable for number of lamps: 1
With remote switch connection: No
Monitoring equipment: Automatic self test
With pictogram: No
Type of wiring: Ending
Light distributor: None
Energy efficiency class of the built-in lamp: A++, A+, A (LED)
Energy efficiency class of the provided exchangeable built-in lamp: A++
Highest energy efficiency class of the exchangeable lamp: A++
Lowest energy efficiency class of the exchangeable lamp: A++
Nominal operation time: 2|2
Manuals and downloads

Commercial Catalog page

Pagina catalogo 609:
Pagina catalogo 83:
Pagina catalogo 119:


442089 (DXF):
442089 (PNG):


Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
