AVE-ita-

VI-BOX6

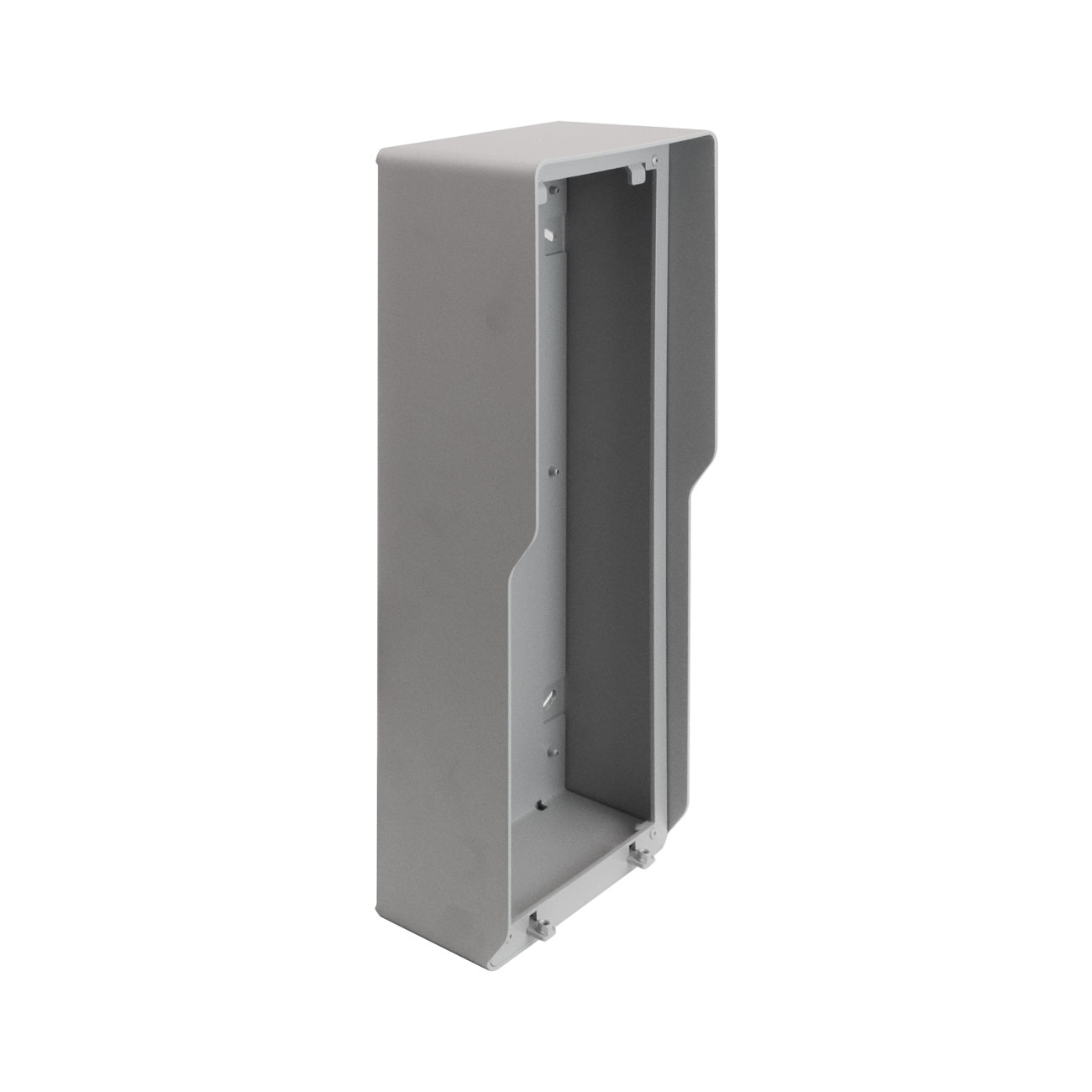

Surface mounting box for VIXX-PE7T

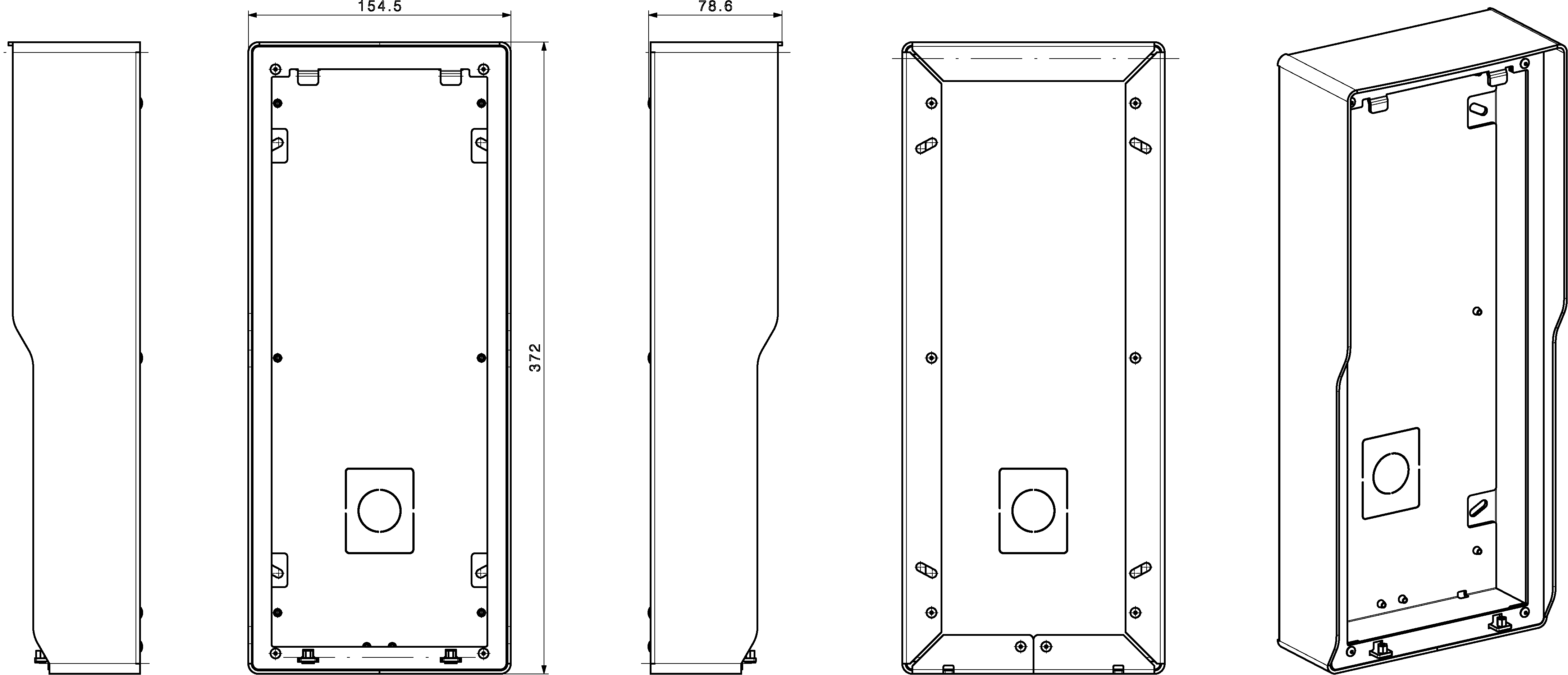

Back-to-wall box for Building model outdoor stations with integrated 7 "touch screen display. The box is equipped with integrated rainproof roof and support frame. Article common to the devices of the V44 EASY and IP V44 SMART 2-wire outdoor units. Dimensions (LxHxP): 372x155x75 mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379161775
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379161775
Length min.pck.: 415,00
Width min.pck.: 165,00
Height min.pck.: 94,00
Volume min.pck.: 6,43
Weight min.pck.: 950,00
Quantity min. order: 1,00
Reference Metel: SURFACE MOUNTING BOX FOR VIXX-PE7T
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Mounting method:
Colour:
Width: 155
Halogen free: Si
Depth: 75
Shape:
Surface protection:
Equipped with:
Length: 372
Sealable: No
Circuit integrity:
Material:
Number of inlets: 1
Explosion-tested version: No
Cover attachment:
With screening: No
Weatherproof: Si
Degree of protection (IP):
For tube diameter:
Inlet from the rear: No
For Ex-zone gas:
Tackable: No
Type of housing feed-through:
For Ex-Zone dust:
Cover model:
Castable: No
With casting compound: No
Transparent cover: No
Degree of protection (NEMA):
Mounting in the soil: No
Mounting under water: No
Manuals and downloads
Request information
Last update: 02-08-2023

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
