TS-SMART10ANS

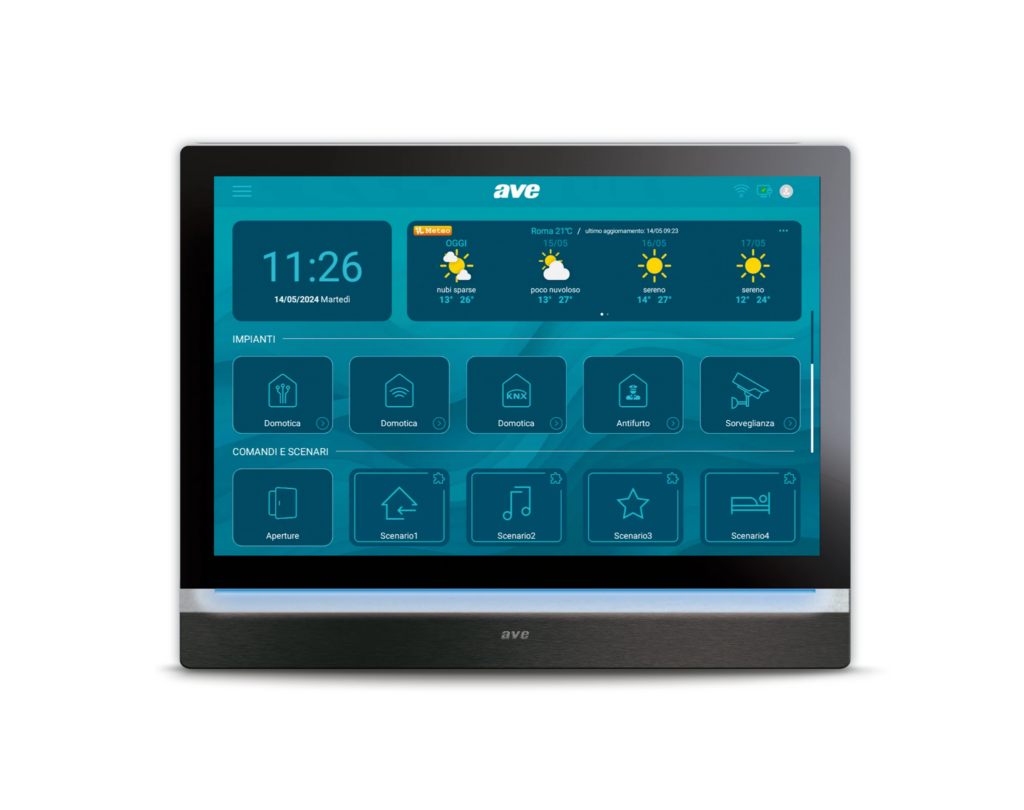

MONITOR WITH 10" TOUCH SCREEN DISPLAY FOR V44 SMART SYSTEM. LAN + WI-FI CONNECTION. BRUSHED NATURAL ALUMINUM COLOR (ANS).
DOMINA V44 SMART touch screen 10 "color graphic LCD. Power supply via 24VDC switching or 48VDC PoE switch. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Fitted with LED strip for ambient light with user-selectable colours. Recessed installation in 3-module box installed horizontally using the bracket supplied with the device.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), related civil series devices (through article 53AB-WBS), direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical sales),compatible with KNX protocol. The device enables remote answering of an incoming video intercom call via the AVE V44 REMOTE APP available for iOS and Android operating systems. Satin burnished aluminium colour. Dimensions 240x187x50 mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379161003
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379161003
Length min.pck.: 217,00
Width min.pck.: 281,00
Height min.pck.: 70,00
Volume min.pck.: 4,26
Weight min.pck.: 1000,00
Quantity min. order: 1,00
Reference Metel: 10" IP TOUCH SCREEN MONITOR - ANS
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

RAEE CAT. 5.18 RIPRODUZ.SUONI:
Dichiarazione UE 20230117_TS-SMART10ANS:
RAEE CAT. 5.18 RIPRODUZ.SUONI
Technical data ETIM

Technical data ETIM

Colour: Anthracite
Installation technique: Network technology
Additional device connectable: No
Video driving: Si
Picture system: PAL
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00441:
Pagina catalogo UK_00568:
Pagina catalogo UK_00505:

Manuals

Manuale TS_SMARTxx_Rev001:
Manuale installatore Sistema V44 SMART_Rev004:
User manual TS_SMARTxx_Rev002_EN:

DXF-Ingombro

ACCESSORIO PER VIDEOCITOFONI (DXF):
TS-SMART10ANS (PNG):
SOLIDO STL (STL):
SOLIDO STEP (STP):

Tagliando

Tagliando:

Software

TS-SMART10 v1.3.1_20240802 - Videocitofonia : software per postazione interna IP TS-SMART10:
DATABASE ETS PER TS-SMART10xx:
SFW-AVE-V44-CONFIG V3.4_20240514 - Software di programmazione Windows per IP e 2F:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
