| Code EAN13: | 8008379038756 |
|---|---|
| Standard packing: | 1,00 |
| Minimum packaging: | 1,00 |
| Code EAN13 min.pck.: | 8008379038756 |
| Length min.pck.: | 91,00 |
| Width min.pck.: | 37,00 |
| Height min.pck.: | 75,00 |
| Volume min.pck.: | 0,25 |
| Weight min.pck.: | 214,80 |
| Quantity min. order: | 1,00 |

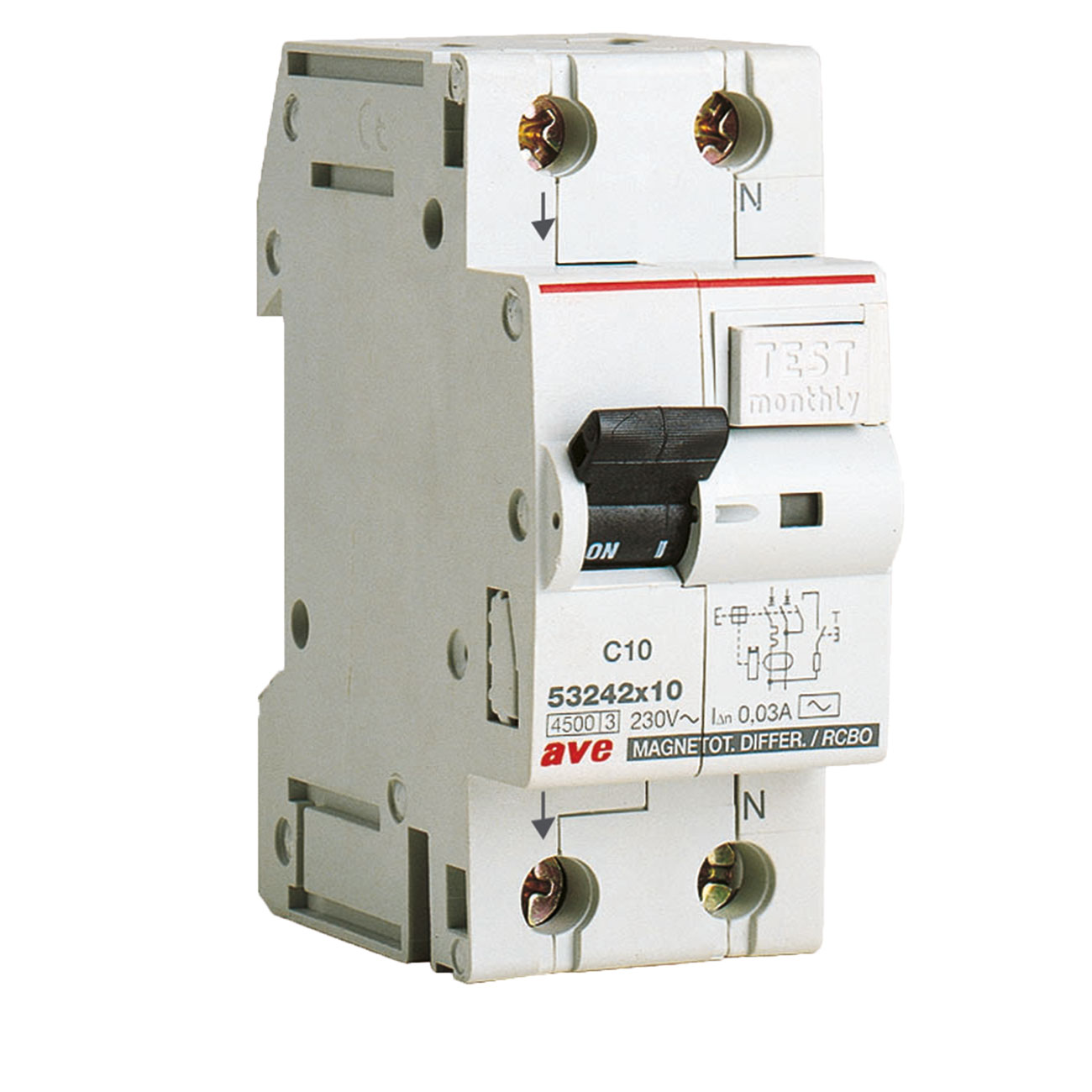

| Reference Metel: | RCBO 1P+N 10A 2MOD. |
| Product status: | In Stock |
| Voltage type: | |
|---|---|
| Rated current: | 10 |
| Rated voltage: | 230 |
| Release characteristic: | |
| Rated insulation voltage Ui: | 1000 |
| Rated fault current: | 0.03 |
| Leakage current type: | |
| Width in number of modular spacings: | 2 |
| Frequency: | |
| Degree of protection (IP): |
| Number of protected poles: | 2 |
|---|---|
| Concurrently switching neutral conductor: | Si |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 6 |
| Suitable for flush-mounted installation: | Si |
| With interlocking device: | No |
| Number of poles (total): | 1 |
| Anti-nuisance tripping version: | No |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 |
| Disconnection characteristic: | |
| Rated short-circuit breaking capacity according to EN 61009: | 4.5 |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
