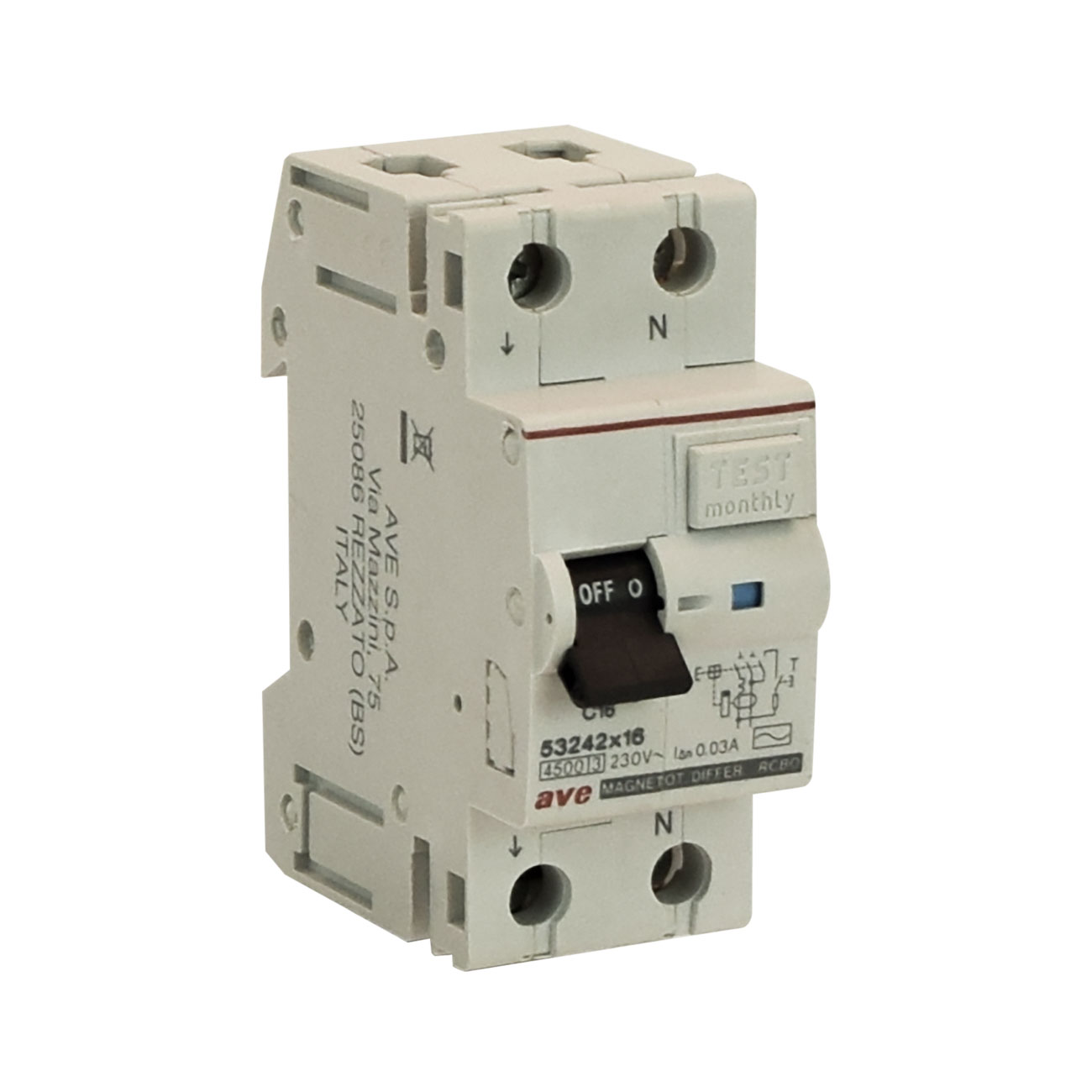

RCBO AC type 1P+N 20A 230Vac In 0,03A - 2 mod
RCBO AC type 1P+N In 20A 230Vac I n 0,03A - 4,5kA - 2 DIN mod.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379038770
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379038770
Length min.pck.: 91,00
Width min.pck.: 37,00
Height min.pck.: 75,00
Volume min.pck.: 0,25
Weight min.pck.: 214,80
Quantity min. order: 1,00
Reference Metel: RCBO 1P+N 20A 2MOD.
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Voltage type:
Rated current: 20
Rated voltage: 230
Release characteristic:
Rated insulation voltage Ui: 1000
Rated fault current: 0.03
Leakage current type:
Width in number of modular spacings: 2
Degree of protection (IP):
Number of protected poles: 2
Concurrently switching neutral conductor: Si
Rated short-circuit breaking capacity according to IEC 60947-2: 6
Suitable for flush-mounted installation: Si
With interlocking device: No
Number of poles (total): 1
Anti-nuisance tripping version: No
Rated short-circuit breaking capacity Icn according to EN 61009-1: 6
Disconnection characteristic:
Rated short-circuit breaking capacity according to EN 61009: 4.5
Manuals and downloads

Commercial Catalog page

Pagina catalogo 656:
Request information
Last update: 02-08-2023

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
